| ब्रांड नाम: | Casun |
| मॉडल नंबर: | 57SHD4101-29PH-IRS57E |
| MOQ: | एल/सी, डी/ए, डी/पी, टी/टी, वेस्टर्न यूनियन, मनीग्राम |
| कीमत: | $35~$37 |
| भुगतान की शर्तें: | डी/ए, टी/टी, एल/सी, डी/पी |
| आपूर्ति की योग्यता: | 10000+पीसी+माह |

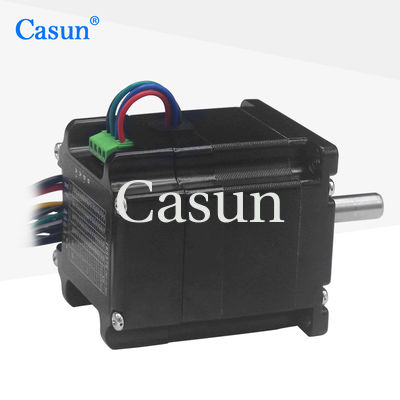

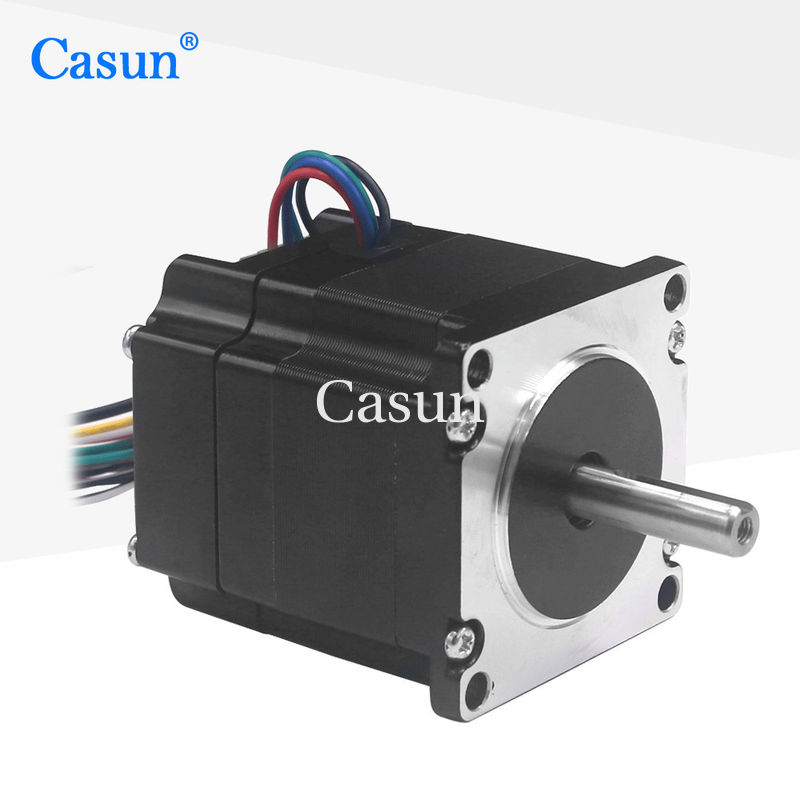

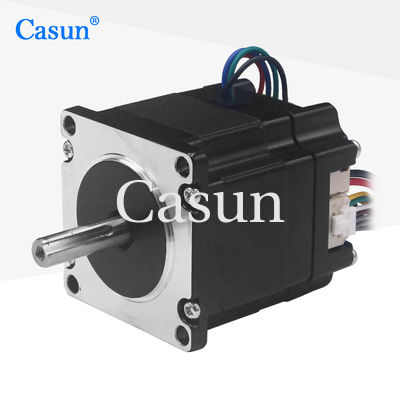

Casun Motor Nema 23 Stepper Motor IRS57E Closed Loop Stepper Motor 900mN.m 12V CE RoHS
The Casun Nema 23 Closed Loop Stepper Motor (Model: IRS57E) delivers industrial-grade precision and reliability for demanding automation applications. Combining 900mN.m high torque with 12V low-voltage operation, this motor integrates encoder-based closed-loop control to eliminate step loss and ensure consistent performance in CNC, robotics, and high-speed positioning systems.
Features:
|
Step Angel
|
1.8° |
|
Frame Size
|
45 mm |
|
Number of Phase
|
2 Phase |
|
Rated Current
|
1.0 Amp |
|
Holding Torque
|
900 mN.m |
|
Resistance
|
12 ohm |
|
Inductance
|
28 mH |
|
Rotor Inertia
|
155 g.cm² |
|
Motor weight
|
0.6 kg |
|
Connection
|
Bipolar |
Motor
Step Angle: 1.8°
Maximum Temperature: 80°C maximum
Ambient Temperature: -20 °C to 50°C
Storage Temperature -20: °C to 100°C
Humidity Range: 85% or less, non-condensing
Magnet Wire Insulation: Class B 130 deg C
Insulation Resistance: 100M Ohm at 500 VDC
Dielectric Strength: 500 VDC for 1 min
Encoder
Voltage: 5 v
Output: A + A - B + B - Z + Z -
