| ब्रांड नाम: | Casun |
| मॉडल नंबर: | B20SHD4351-C9P |
| MOQ: | एल/सी, डी/ए, डी/पी, टी/टी, वेस्टर्न यूनियन, मनीग्राम |
| कीमत: | $16.8~$19 |
| भुगतान की शर्तें: | डी/ए, टी/टी, एल/सी, डी/पी |
| आपूर्ति की योग्यता: | 10000+पीसी+माह |

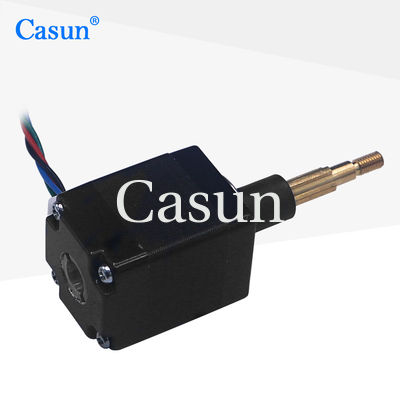

Casun Linear Stepper Motor with 0.8 Kg at 600 PPS 1.8° Degree Nema 8 High Precision Stepper Motor
The Casun NEMA 8 Linear Stepper Motor delivers high precision (1.8° step angle) and smooth motion, with a thrust force of 0.8 kg at 600 PPS. Compact yet powerful, it’s ideal for applications requiring accurate positioning in tight spaces, such as medical devices, lab automation, and small CNC systems. Engineered for reliability and efficiency, this motor ensures consistent performance in precision-driven tasks.
Features:
|
Step Angel
|
1.8° |
|
Frame Size
|
28 mm |
|
Number of Phase
|
2 Phase |
|
Rated Current
|
0.5 Amp |
|
Holding Torque
|
0.8 kg at 600 PPS |
|
Resistance
|
5.1 ohm |
|
Inductance
|
1.5 mH |
|
Rotor Inertia
|
2 g.cm² |
|
Motor weight
|
0.1 kg |
|
Connection
|
Bipolar |
Motor
Step Angle: 1.8°
Maximum Temperature: 80°C maximum
Ambient Temperature: -20 °C to 50°C
Storage Temperature -20: °C to 100°C
Humidity Range: 85% or less, non-condensing
Magnet Wire Insulation: Class B 130 deg C
Insulation Resistance: 100M Ohm at 500 VDC
Dielectric Strength: 500 VDC for 1 min
Encoder
Voltage: 5 v
Output: A + A - B + B - Z + Z -
