| ब्रांड नाम: | Casun |
| मॉडल नंबर: | P35SHD4113-21SH |
| MOQ: | एल/सी, डी/ए, डी/पी, टी/टी, वेस्टर्न यूनियन, मनीग्राम |
| कीमत: | $3~$4.6 |
| भुगतान की शर्तें: | डी/ए, टी/टी, एल/सी, डी/पी |
| आपूर्ति की योग्यता: | 10000+पीसी+माह |

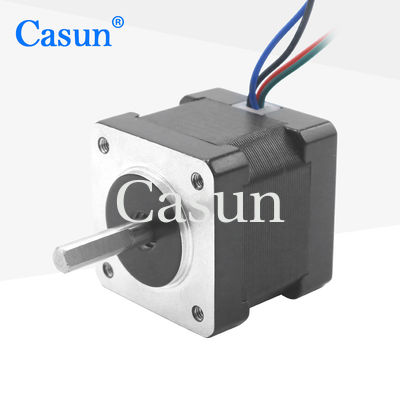

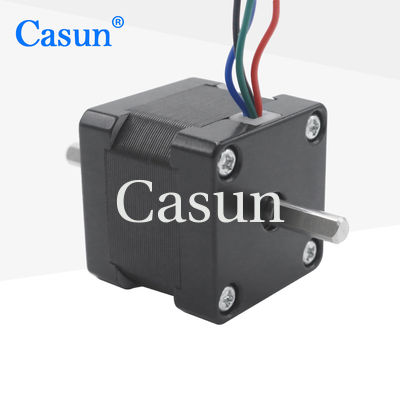

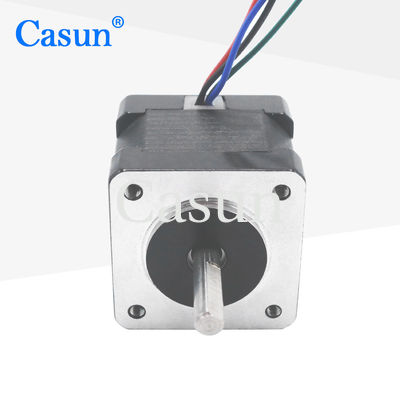

Customizable Hybrid Stepper Motor with Hollow Shaft Nema 14 140 mN.m 1.0 A with CE RoHS Certification
A CE/RoHS-certified hybrid stepper motor featuring a hollow shaft design for cable routing applications. Delivers 140 mN.m holding torque at 1.0 A, ideal for medical devices, small robotics, and automation systems.
Features:
|
Step Angel
|
1.8° |
|
Frame Size
|
34 mm |
|
Number of Phase
|
2 Phase |
|
Rated Current
|
1 Amp |
|
Holding Torque
|
140 mN.m |
|
Resistance
|
2.7 ohm |
|
Inductance
|
4.3 mH |
|
Rotor Inertia
|
14 g.cm² |
|
Motor weight
|
0.2 kg |
|
Connection
|
Bipolar |
Motor
Step Angle: 1.8°
Maximum Temperature: 80°C maximum
Ambient Temperature: -20 °C to 50°C
Storage Temperature -20: °C to 100°C
Humidity Range: 85% or less, non-condensing
Magnet Wire Insulation: Class B 130 deg C
Insulation Resistance: 100M Ohm at 500 VDC
Dielectric Strength: 500 VDC for 1 min
Encoder
Voltage: 5 v
Output: A + A - B + B - Z + Z -
