| ब्रांड नाम: | Casun |
| मॉडल नंबर: | 57SHD0906-20BH |
| MOQ: | 1पीसी |
| कीमत: | $3.14-$5 |
| भुगतान की शर्तें: | डी/ए, टी/टी, एल/सी, डी/पी |
| आपूर्ति की योग्यता: | 40000+पीसी+महीना |

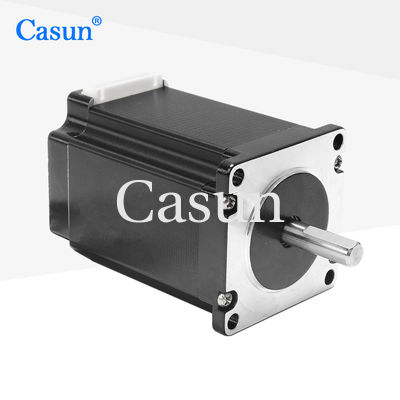

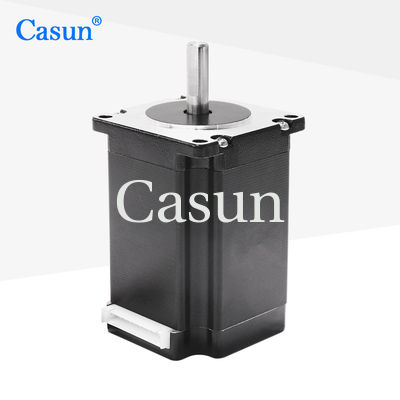

NEMA 23 stepper motors have high speed capability, allowing for rapid rotation and positioning.
Very suitable for applications that require precise control and positioning, such as 3D printers, robots, etc.
Features:
Step Angel |
1.8 ° |
Fram Size |
57 mm |
Number of Phase |
4 Phase |
Rated Current |
2.0 A |
Holding Torque |
1600 mN.m |
Resistance |
2.5 ohm |
Inductance |
4.9 mH |
Rotor Inertia |
480 g-cm² |
Motor weight |
1.2 kg |
Number of leads |
4 |
Connection |
Bipolar |
Step Angle: 1.8°
Maximum Temperature :80°C maximum
Ambient Temperature: -20 °C to 50°C
Storage Temperature -20: °C to 100°C
Humidity Range (%) :85% or less, non-condensing
Magnet Wire Insulation :Class B 130 deg C
Insulation Resistance :100M Ohm at 500 VDC
Dielectric Strength :500 VDC for 1 min
| Model | Holding Torque | Step Angle | Length | Type of Shaft | Rated Current |
| 57SHD4013-21B | 0.6N.m | 1.8° | 41mm | D Shaft-21mm | 1.0A |
| 57SHD4415-21B | 1.1N.m | 1.8° | 54mm | D Shaft-21mm | 3.0A |
| 57SHD4816-21B | 2.0N.m | 1.8° | 76mm | D Shaft-21mm | 3.0A |
| 57SHD4913-21B | 2.5N.m | 1.8° | 83mm | D Shaft-21mm | 3.0A |
| 57SHD4934-20B | 3.0N.m | 1.8° | 100mm | D Shaft-20mm | 3.0A |
