| ब्रांड नाम: | Casun |
| मॉडल नंबर: | 60SHD6705-21B |
| MOQ: | 1पीसी |
| कीमत: | $12.00-$16 |
| भुगतान की शर्तें: | डी/ए, टी/टी, एल/सी, डी/पी |
| आपूर्ति की योग्यता: | 40000+पीसी+महीना |

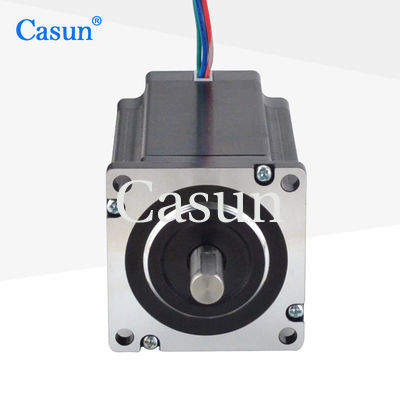

NEMA 23 stepper motors are characterized by high torque, high precision, and high reliability.
Widely used in various fields such as automation equipment, robots, and robotic arms.
Features:
|
Step Angel
|
1.8 ° |
|
Fram Size
|
60 mm |
|
Number of Phase
|
4 Phase |
|
Rated Current
|
3.5 Amp |
|
Holding Torque
|
3.0 N.m |
|
Resistance
|
1.8ohm |
|
Inductance
|
3.5mH |
|
Rotor Inertia
|
1000g-cm² |
|
Motor weight
|
1.5kg |
|
|
|
|
|
|
Motor
Step Angle: 1.8°
Maximum Temperature :80°C maximum
Ambient Temperature: -20 °C to 50°C
Storage Temperature -20: °C to 100°C
Humidity Range (%) :85% or less, non-condensing
Magnet Wire Insulation :Class B 130 deg C
Insulation Resistance :100M Ohm at 500 VDC
Dielectric Strength :500 VDC for 1 min
| Model | Holding Torque | Step Angle | Length | Type of Shaft | Rated Current |
| 42SHD4950 | 0.13N.m | 1.8° | 20mm | D Shaft-20mm | 1.0A |
| 42SHD4003 | 0.26N.m | 1.8° | 34mm | D Shaft-20mm | 0.4A |
| 42SHD0261 | 0.45N.m | 1.8° | 40mm | D Shaft-20mm | 1.68A |
| 42SHD4425 | 0.59N.m | 1.8° | 48mm | D Shaft-24mm | 2.0A |
| 42SHD4813 | 0.8N.m | 1.8° | 60mm | D Shaft-24mm | 2.1A |
Download
We have the ability to customize motor features such as shafts, winding parameters, installation dimensions, lead wires, and connectors can help to ensure that the motor is a perfect fit for the customer's application. This can lead to improved efficiency, increased reliability, and reduced downtime.
