Captive Stepper Motor
Created with Pixso.

NEMA 17 Captive stroke 32mm 2.0A 42×42×34mm Stepper Motor for Precision machinery

NEMA 17 Captive stroke 32mm 2.0A 42×42×34mm Stepper Motor for Precision machinery

ब्रांड नाम: Casun
मॉडल नंबर: 42SHD4244-C32LQ
MOQ: 1पीसी
कीमत: $26-$31
भुगतान की शर्तें: डी/ए, टी/टी, एल/सी, डी/पी
आपूर्ति की योग्यता: 40000+पीसी+महीना
विस्तृत जानकारी
उत्पत्ति के प्लेस:
चीन
प्रमाणन:
CE,ROHS,ISO
कदम परी:
1.8°
टोक़ धारण करना:
300mN.m
मौजूदा:
2.0ए
मोटर की लंबाई:
34एमएम
strok हो जाता है:
32 मिमी लंबाई
स्वनिर्धारित:
मोटर को अनुकूलित अनुरोध के साथ डिजाइन और निर्मित किया जा सकता है।
पैकेजिंग विवरण:
कार्टन:38x29xc14m
प्रमुखता देना:

42×42×34mm Captive Stepper Motor

,

2.0A Captive Stepper Motor

,

32mm Captive Stepper Motor

उत्पाद वर्णन

Linear push rod stepper motors usually have standardized installation dimensions and are easy to install.

Linear push rod stepper motors are widely used in automation equipment, precision machinery, medical equipment, industrial robots, and other fields.



Features:

  • Bipolar or unipolar versions available

  • Established in China for 12 years and has served more than 800 customers

  • Professional drivetrain solution specialist

  • Contract-based manufacturing services are welcome

  • Every stepper motor model is adaptable to various applications

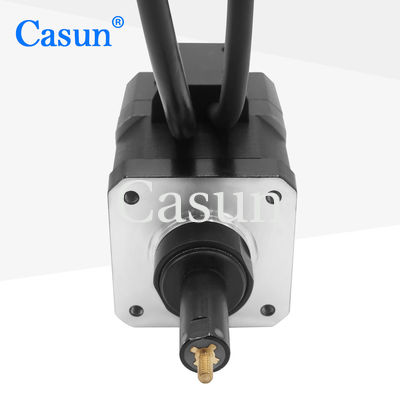

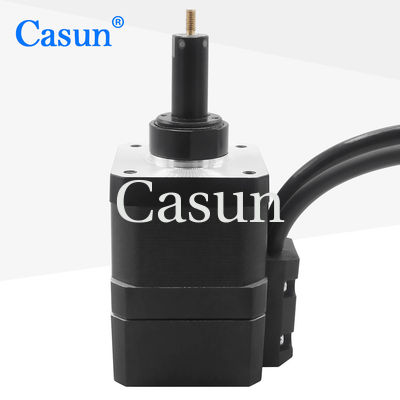

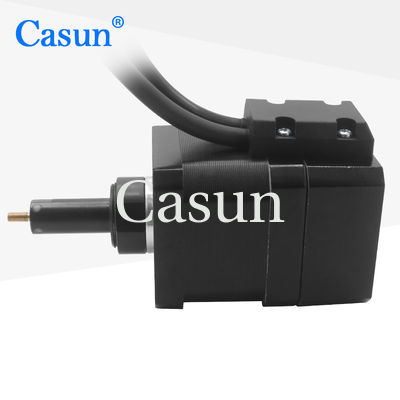

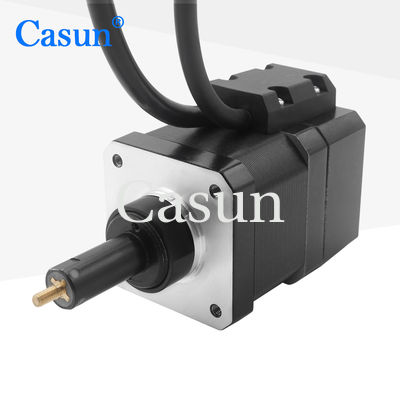

Appearance



NEMA 17 Captive stroke 32mm 2.0A 42×42×34mm Stepper Motor for Precision machinery 0

Dimensions

NEMA 17 Captive stroke 32mm 2.0A 42×42×34mm Stepper Motor for Precision machinery 1



Motor Specifications

Step Angel

1.8 °

Fram Size

34 mm

Number of Phase

2 Phase

Rated Current

2.0 A

minimal thrust

300mN.m

Resistance

4.5 ohm

Inductance

15 mH

Rotor Inertia

37 g.cm²

Motor weight

0.28 kg

Number of leads

4

Connection

Bipolar









Torque Curves













NEMA 17 Captive stroke 32mm 2.0A 42×42×34mm Stepper Motor for Precision machinery 2

Download







If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Connector

Please click the "Get  a quote" button below to tell us your requirements.
