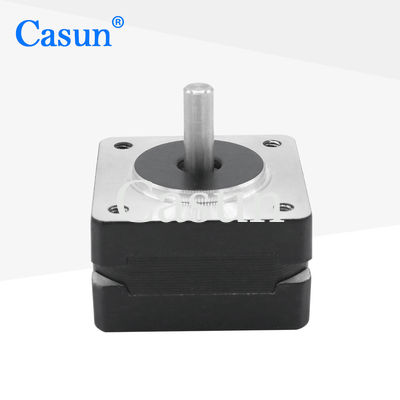

Stepper Motor Nema 14 35x35x20mm 1.8 Degree 2 Phase Hybrid 0.4A for Stage Lighting

Stepper Motor Nema 14 35x35x20mm 1.8 Degree 2 Phase Hybrid 0.4A for Stage Lighting

ब्रांड नाम:	Casun
मॉडल नंबर:	P35SHD0303-15H
MOQ:	1पीसी
कीमत:	$4.14-$6.98
भुगतान की शर्तें:	डी/ए, टी/टी, एल/सी, डी/पी
आपूर्ति की योग्यता:	40000+पीसी+महीना

विस्तृत जानकारी

उत्पाद वर्णन

विस्तृत जानकारी

उत्पत्ति के प्लेस:

चीन

प्रमाणन:

CE,ROSH,ISO

कदम परी:

1.8°

टोक़ धारण करना:

60mN.m

मौजूदा:

0.4 ए

मोटर की लंबाई:

20 मिमी

शाफ़्ट:

गोल दस्ता 15 मिमी लंबाई

स्वनिर्धारित:

मोटर को अनुकूलित अनुरोध के साथ डिजाइन और निर्मित किया जा सकता है।

पैकेजिंग विवरण:

कार्टन:36x29x14 सेमी

प्रमुखता देना:

0.4A Nema 14 Stepper Motor

2 Phase Nema 14 Stepper Motor

Nema 14 35x35x20mm Stepper Motor

उत्पाद वर्णन

NEMA 14 stepper motors have high efficiency and can fully utilize electrical energy for conversion and movement.

Its performance and cost advantages make it the preferred motor for many applications.

Features:

Bipolar or unipolar versions available
High accuracy and torque
Available in single or double shaft versions
Each model of stepper motor can be suitable for different scenarios
High torque and high precision

Motor Specifications

Step Angel	1.8 °
Fram Size	35 mm
Number of Phase	2 Phase
Rated Current	0.4 A
Holding Torque	60 mN.m
Resistance	22 ohm
Inductance	15 mH
Rotor Inertia	10 g-cm²
Motor weight	0.09 kg
Number of leads	4
Connection	Bipolar

Appearance

Dimensions

Torque Curves

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Connector

Please click the "Get a quote" button below to tell us your requirements.
