| ब्रांड नाम: | Casun |
| मॉडल नंबर: | 28SHD0202-110NK |
| MOQ: | 1पीसी |
| कीमत: | $9.94-$12.8 |
| भुगतान की शर्तें: | डी/ए, टी/टी, एल/सी, डी/पी |
| आपूर्ति की योग्यता: | 40000+पीसी+महीना |

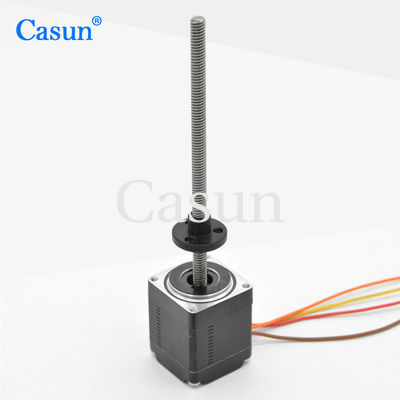

The screw design reduces mechanical friction and backlash, making the system run more smoothly.
Widely used in various fields such as medical equipment, semiconductor processing, valve control, X-Y workbench, handheld instruments, etc.
Features:
|
Step Angel
|
1.8 ° |
|
Fram Size
|
28mm |
|
Number of Phase
|
2 Phase |
|
Rated Current
|
0.67Amp |
|
Holding Torque
|
60 mN.m |
|
Resistance
|
5.6 ohm |
|
Inductance
|
3.4 mH |
|
Rotor Inertia
|
9g-cm² |
|
Motor weight
|
0.12kg |
|
Lead Screw
|
Tr5X8 |
|
Connection
|
Bipolar |
Step Angle: 1.8°
Maximum Temperature :80°C maximum
Ambient Temperature: -20 °C to 50°C
Storage Temperature -20: °C to 100°C
Humidity Range (%) :85% or less, non-condensing
Magnet Wire Insulation :Class B 130 deg C
Insulation Resistance :100M Ohm at 500 VDC
Dielectric Strength :500 VDC for 1 min
Shaft Radial Play:0.02Max. (450g-load)
Shaft Axial Play:0.08Max. (450g-load)
Max. radial force:28N (20mm from the flange)
Max. axial force):10N
