Hybrid Stepper Motor
Created with Pixso.

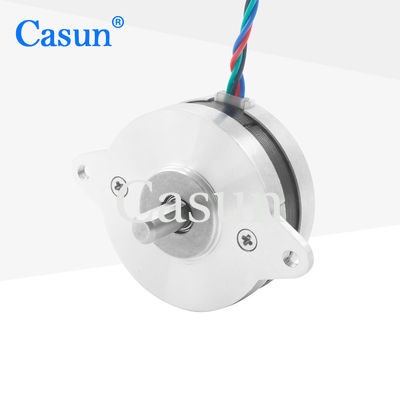

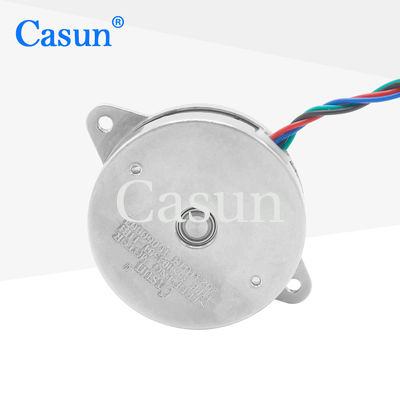

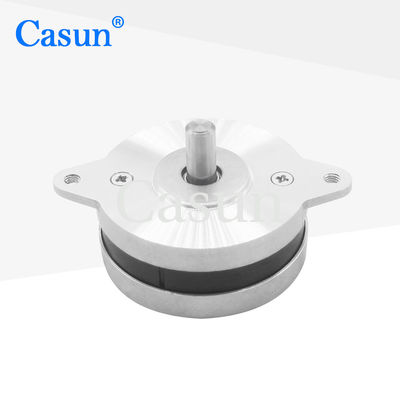

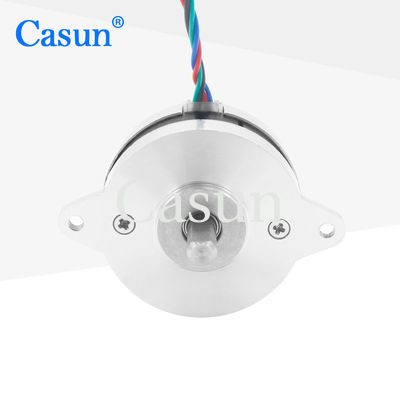

1.8 Degree NEMA 14 SMT Stepper Motor 6.6V 90mN.m Gear Shaft Permanent Magnet Motor

1.8 Degree NEMA 14 SMT Stepper Motor 6.6V 90mN.m Gear Shaft Permanent Magnet Motor

ब्रांड नाम: Casun
मॉडल नंबर: 36SHD4301-11B1
MOQ: 1पीसी
कीमत: $4.14-$6.98
भुगतान की शर्तें: डी/ए, टी/टी, एल/सी, डी/पी
आपूर्ति की योग्यता: 40000+पीसी+महीना
विस्तृत जानकारी
उत्पत्ति के प्लेस:
चीन
प्रमाणन:
CE,ROHS,ISO
कदम परी:
1.8°
टोक़ धारण करना:
70mN.m
मौजूदा:
0.3a
मोटर की लंबाई:
15.4 मिमी
शाफ़्ट:
11 मिमी लंबाई
स्वनिर्धारित:
मोटर को अनुकूलित अनुरोध के साथ डिजाइन और निर्मित किया जा सकता है।
पैकेजिंग विवरण:
कार्टन:36x29x14 सेमी
प्रमुखता देना:

1.8 Degree SMT Stepper Motor

,

90mN.m SMT Stepper Motor

,

6.6V SMT Stepper Motor

उत्पाद वर्णन

They have high stiffness and good torque characteristics, which enables them to maintain good positioning accuracy even under load.

Provide different configuration options, such as different step angles, lengths, and torque levels.



Features:

  • Our engineering team will reach out within 48 hours to deliver the optimal solution

  • Expert in drivetrain solutions

  • Delivering high torque and accuracy

  • Provide bespoke services

  • Customizations on request





Motor Specifications

Step Angel

1.8 °

Fram Size

35 mm

Number of Phase

2 Phase

Rated Current

0.3 A

Holding Torque

70 mN.m

Resistance

15.5 ohm

Inductance

7 mH

Rotor Inertia

4 g-cm²

Motor weight

0.06 kg

Number of leads

4

Connection

Bipolar





Appearance



1.8 Degree NEMA 14 SMT Stepper Motor 6.6V 90mN.m Gear Shaft Permanent Magnet Motor 0

Dimensions

1.8 Degree NEMA 14 SMT Stepper Motor 6.6V 90mN.m Gear Shaft Permanent Magnet Motor 1





Torque Curves



















Download







If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters,

installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Connector

Please click the "Get  a quote" button below to tell us your requirements.
