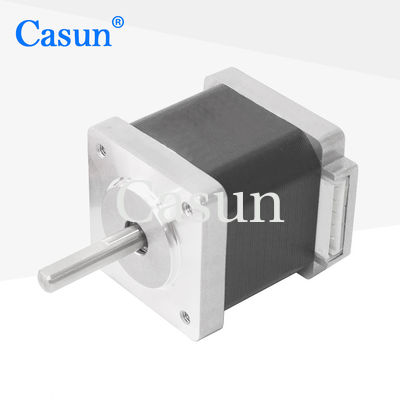

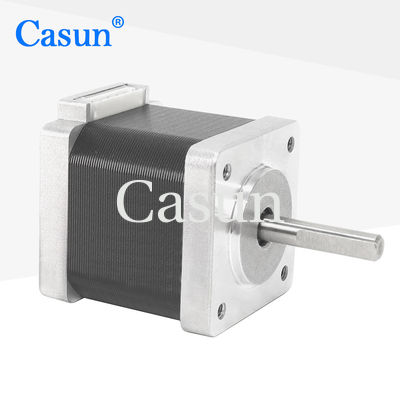

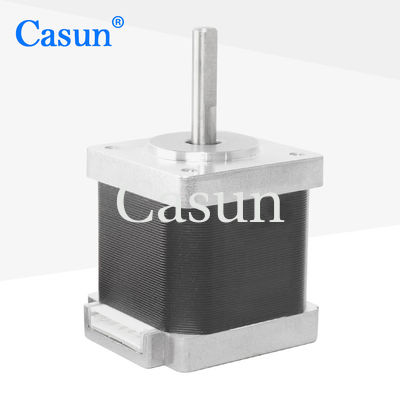

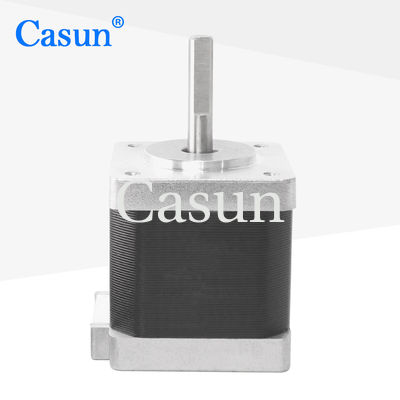

1.0A Micro Stepping Motor 1.8 Degree Hybrid NEMA 14 35mm Body

1.0A Micro Stepping Motor 1.8 Degree Hybrid NEMA 14 35mm Body

ब्रांड नाम: Casun
मॉडल नंबर: 35SHD0806-20BV2
MOQ: 1पीसी
कीमत: $4.14-$6.98
भुगतान की शर्तें: डी/ए, टी/टी, एल/सी, डी/पी
आपूर्ति की योग्यता: 40000+पीसी+महीना
विस्तृत जानकारी
उत्पत्ति के प्लेस:
चीन
प्रमाणन:
CE,ROHS,ISO
कदम परी:
1.8°
टोक़ धारण करना:
140mN.m
मौजूदा:
1.0ए
मोटर की लंबाई:
40 मिमी
शाफ़्ट:
मिलिंग फ्लैट शाफ्ट 20 मिमी लंबाई
स्वनिर्धारित:
मोटर को अनुकूलित अनुरोध के साथ डिजाइन और निर्मित किया जा सकता है।
पैकेजिंग विवरण:
कार्टन:36x29x14 सेमी
प्रमुखता देना:

1.0A Micro Stepping Motor

,

1.8 Degree Micro Stepping Motor

उत्पाद वर्णन

High Quality 1.8 Degree Hybrid NEMA 14 35mm Body Micro Stepping Motor Arduino

Due to their low vibration and noise levels, they are often used in medical equipment.

The motion of the NEMA14 stepper motor is predictable and repeatable.



Features:

  • Bipolar or unipolar versions available

  • Our engineers will respond within 48 hours to provide the best solution

  • Available in single or double shaft versions

  • To give the best solution, our engineers will contact you within 48 hours

  • Contract manufacturing accepted





Motor Specifications

Step Angel

1.8 °

Fram Size

35 mm

Number of Phase

2 Phase

Rated Current

1.0 A

Holding Torque

140 mN.m

Resistance

2.5 ohm

Inductance

1.9 mH

Rotor Inertia

18 g-cm²

Motor weight

0.21 kg

Number of leads

4

Connection

Bipolar





Appearance



1.0A Micro Stepping Motor 1.8 Degree Hybrid NEMA 14 35mm Body 0

Dimensions

1.0A Micro Stepping Motor 1.8 Degree Hybrid NEMA 14 35mm Body 1



Torque Curves



Download







If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Connector

Please click the "Get  a quote" button below to tell us your requirements.
