| ब्रांड नाम: | Casun |
| मॉडल नंबर: | E39D40044004-05 |
| MOQ: | 1पीसी |
| कीमत: | $18-$23 |
| भुगतान की शर्तें: | डी/ए, टी/टी, एल/सी, डी/पी |
| आपूर्ति की योग्यता: | 100000+पीसी+महीना |

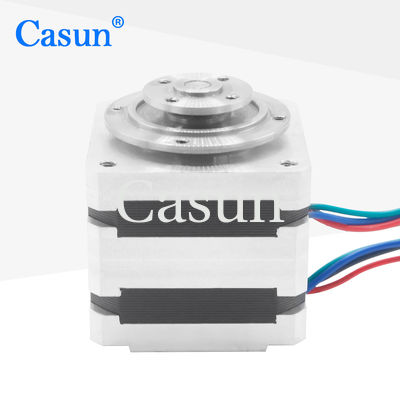

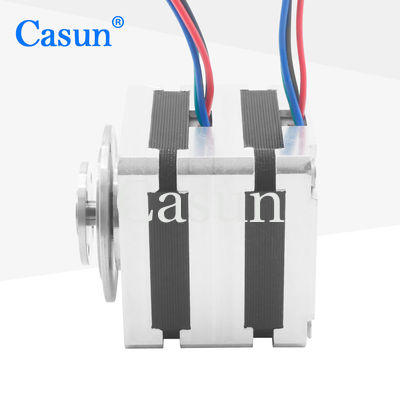

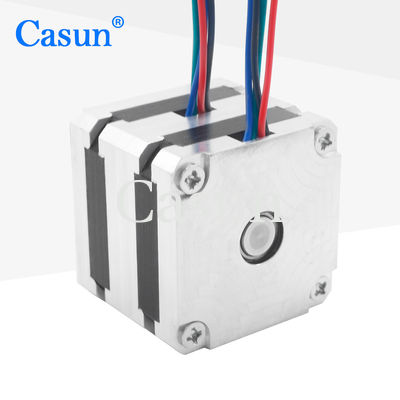

Stufe Stufe New Types Sliver Color Nema 16 150mN.M 8 V Multilayer Motor For Medical Device
Multisport motor nema16 hybrid stepper 39x39x35mm 150mN.m
These are the details of the Nema16 stepper motor you mentioned:
Step angle is 1.8 degrees every step, and the motor is 39 x 39 mm in size.
Current rating: 0.8A
150 mN.m. of holding torque
0.22 kilograms (4.2 oz)
This is a motor independently developed and patented by our company.
E39 series multi-motion stepping motor is a new type of patented stepping motor (patent number: ZL2013 2 0370752.8).
Non-interfering, precise structure, shaft runout less than 0.025, suitable for industrial robots, stage lights and other automation control fields.
Motor Specifications
Step Angel |
1.8 ° |
Fram Size |
39mm |
Number of Phase |
2 Phase |
Rated Current |
0.4A |
Holding Torque |
150mN.m |
Resistance |
30ohm |
Inductance |
45mH |
Rotor Inertia |
20 g-cm² |
Motor weight |
0.12kg |
Number of leads |
4 |
Connection |
Bipolar |
Appearance
