| ब्रांड नाम: | Casun |
| मॉडल नंबर: | 57SHD0807-24BH |
| MOQ: | 1पीसी |
| कीमत: | $3.14-$5 |
| भुगतान की शर्तें: | डी/ए, टी/टी, एल/सी, डी/पी |
| आपूर्ति की योग्यता: | 40000+पीसी+महीना |

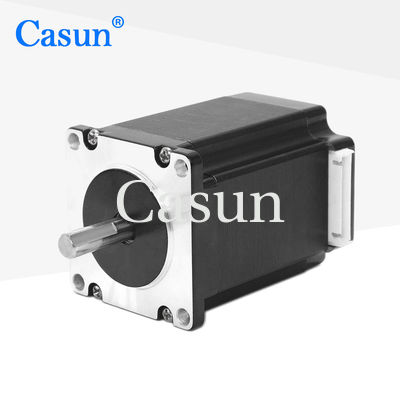

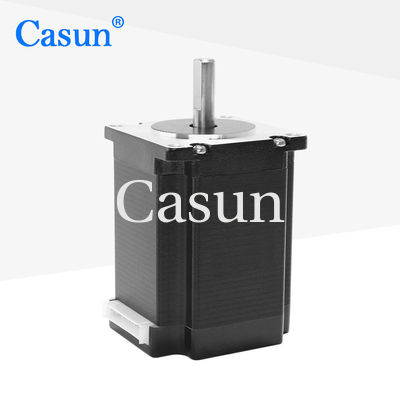

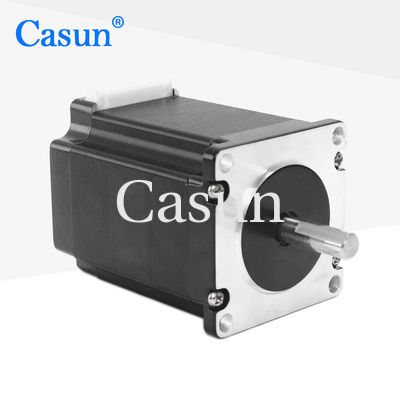

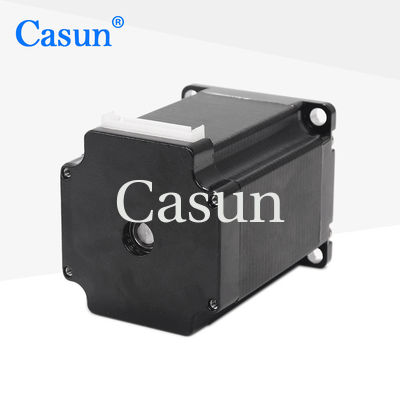

【57SHD0807】57x57x76mm 2 Phase High Torque 2.2N.m 3.0A NEMA 23 Hybrid Stepper Motor for CMM Robot
The 57mm Hybrid Stepper Motor Series offers powerful holding torque in a variety of sizes.
Use with a microstepping driver to reduce vibration and achieve higher step resolution.
Choose a baseline version or request your own customized configuration.
Features:
Step Angel |
1.8 ° |
Fram Size |
57 mm |
Number of Phase |
2 Phase |
Rated Current |
3.0 A |
Holding Torque |
2200 mN.m |
Resistance |
2.0 ohm |
Inductance |
8.0 mH |
Rotor Inertia |
460 g-cm² |
Motor weight |
1 kg |
Number of leads |
4 |
Connection |
Bipolar |
Step Angle: 1.8°
Maximum Temperature :80°C maximum
Ambient Temperature: -20 °C to 50°C
Storage Temperature -20: °C to 100°C
Humidity Range (%) :85% or less, non-condensing
Magnet Wire Insulation :Class B 130 deg C
Insulation Resistance :100M Ohm at 500 VDC
Dielectric Strength :500 VDC for 1 min
| Model | Holding Torque | Step Angle | Length | Type of Shaft | Rated Current |
| 57SHD4013-21B | 0.6N.m | 1.8° | 41mm | D Shaft-21mm | 1.0A |
| 57SHD4415-21B | 1.1N.m | 1.8° | 54mm | D Shaft-21mm | 3.0A |
| 57SHD4816-21B | 2.0N.m | 1.8° | 76mm | D Shaft-21mm | 3.0A |
| 57SHD4913-21B | 2.5N.m | 1.8° | 83mm | D Shaft-21mm | 3.0A |
| 57SHD4934-20B | 3.0N.m | 1.8° | 100mm | D Shaft-20mm | 3.0A |
