| ब्रांड नाम: | Casun |
| मॉडल नंबर: | P35SHD4150-9SKH |
| MOQ: | 1पीसी |
| कीमत: | $4.14-$6.98 |
| भुगतान की शर्तें: | डी/ए, टी/टी, एल/सी, डी/पी |
| आपूर्ति की योग्यता: | 40000+पीसी+महीना |

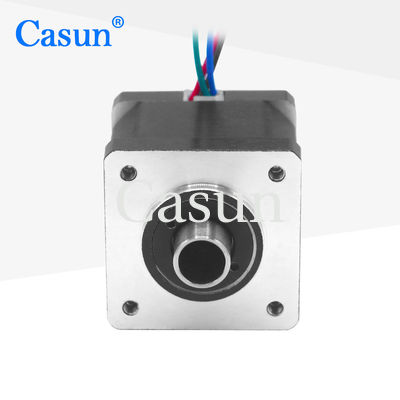

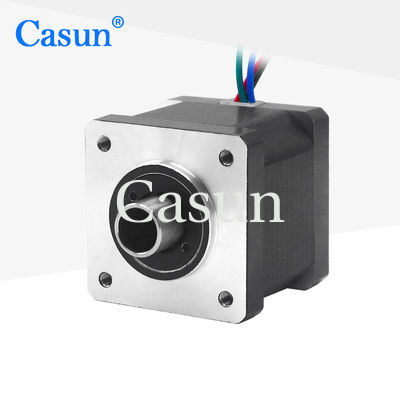

The 35mm dual axis hollow stepper motor has advantages such as hollow structure, high accuracy, low noise, and fast response
Use with a microstepping driver to reduce vibration and achieve higher step resolution.
Choose a baseline version or request your own customized configuration.
Features:
Step Angel |
1.8 ° |
Fram Size |
35 mm |
Number of Phase |
2 Phase |
Rated Current |
1.0 A |
Holding Torque |
190 mN.m |
Resistance |
3.5 ohm |
Inductance |
3.6 mH |
Rotor Inertia |
20 g-cm² |
Motor weight |
0.18 kg |
Number of leads |
4 |
Connection |
Bipolar |
