Lead Screw Stepper Motor
Created with Pixso.

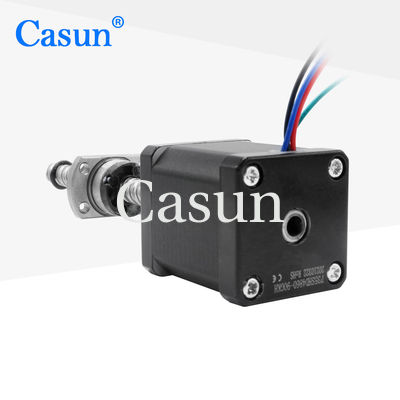

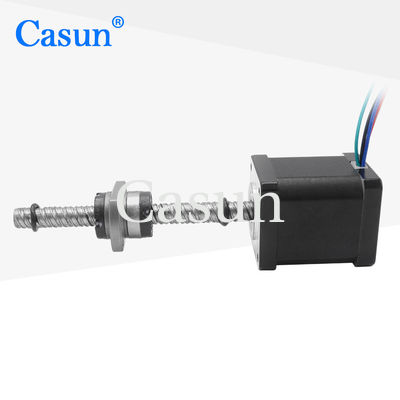

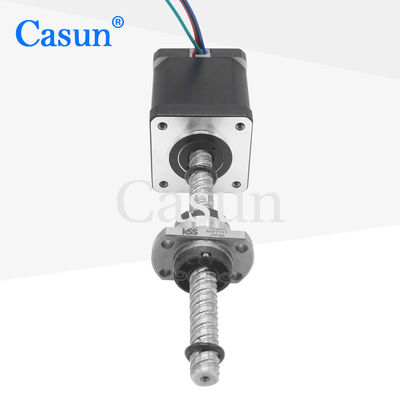

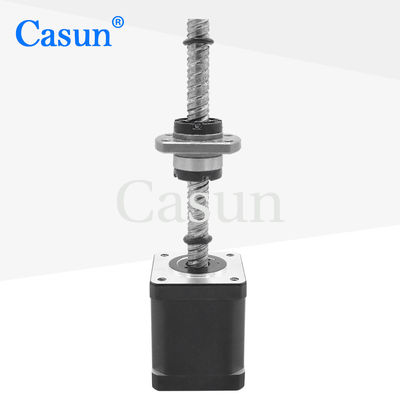

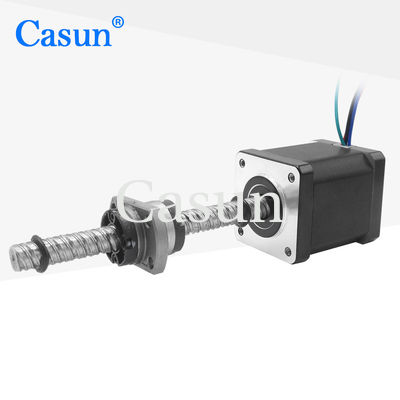

4.05V 1.5A 1.8 Degree 2 Phase NEMA 14 Linear Stepper Motor 35x35mm Ball Screw

4.05V 1.5A 1.8 Degree 2 Phase NEMA 14 Linear Stepper Motor 35x35mm Ball Screw

ब्रांड नाम: Casun
मॉडल नंबर: P35SHD4860-90GKH
MOQ: 1पीसी
कीमत: $4.14-$6.98
भुगतान की शर्तें: डी/ए, टी/टी, एल/सी, डी/पी
आपूर्ति की योग्यता: 40000+पीसी+महीना
विस्तृत जानकारी
उत्पत्ति के प्लेस:
चीन
प्रमाणन:
CE,ROHS,ISO
कदम परी:
1.8°
टोक़ धारण करना:
360mN.m
मौजूदा:
1.5 ए
मोटर की लंबाई:
46 मिमी
शाफ़्ट:
बॉल स्क्रू शाफ्ट 90 मिमी लंबाई
स्वनिर्धारित:
मोटर को अनुकूलित अनुरोध के साथ डिजाइन और निर्मित किया जा सकता है।
पैकेजिंग विवरण:
कार्टन:36x29x14 सेमी
प्रमुखता देना:

1.5A NEMA 14 Linear Stepper Motor

,

4.05V NEMA 14 Linear Stepper Motor

उत्पाद वर्णन

The ball guiding structure can provide smooth motion and lower friction loss, thereby improving the stability and reliability of the system.

It can achieve high speed and is suitable for applications that require fast linear motion.



Features:

  • Specializing in tailor-made services is our expertise

  • Hybrid stepper construction

  • Having operated in China for 12 years, we have served over 800 customers

  • CE and RoHS approved

  • Your purchase comes with a ten-year warranty, ensuring confidence





Motor Specifications

Step Angel

1.8 °

Fram Size

35 mm

Number of Phase

2 Phase

Rated Current

1.5 A

Holding Torque

360 mN.m

Resistance

2.7 ohm

Inductance

3.2 mH

Rotor Inertia

35 g-cm²

Motor weight

0.35 kg

Number of leads

4

Connection

Bipolar



Appearance



4.05V 1.5A 1.8 Degree 2 Phase NEMA 14 Linear Stepper Motor 35x35mm Ball Screw 0

Dimensions

4.05V 1.5A 1.8 Degree 2 Phase NEMA 14 Linear Stepper Motor 35x35mm Ball Screw 1







Torque Curves

















4.05V 1.5A 1.8 Degree 2 Phase NEMA 14 Linear Stepper Motor 35x35mm Ball Screw 2



Download







If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Connector

Please click the "Get  a quote" button below to tell us your requirements.
